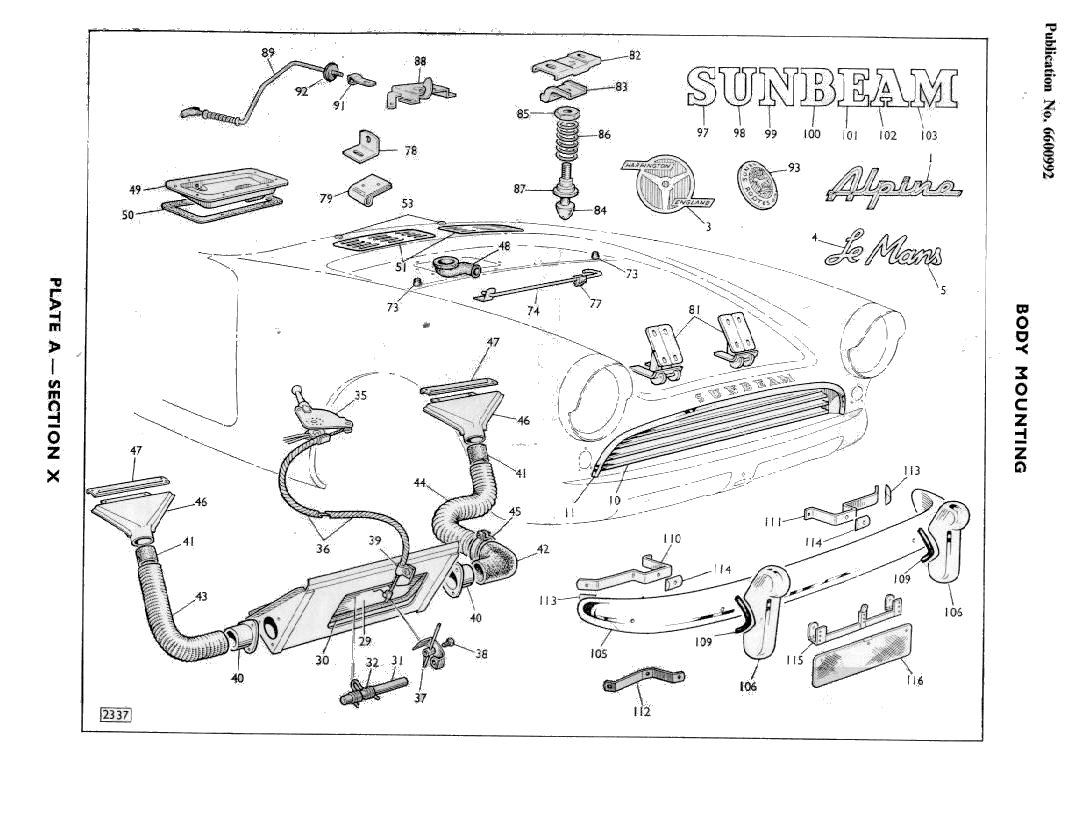

Series I/II Front Body Mounting -600- 100%
Series I/II Front Body Mounting
From Tigers East/Alpines East

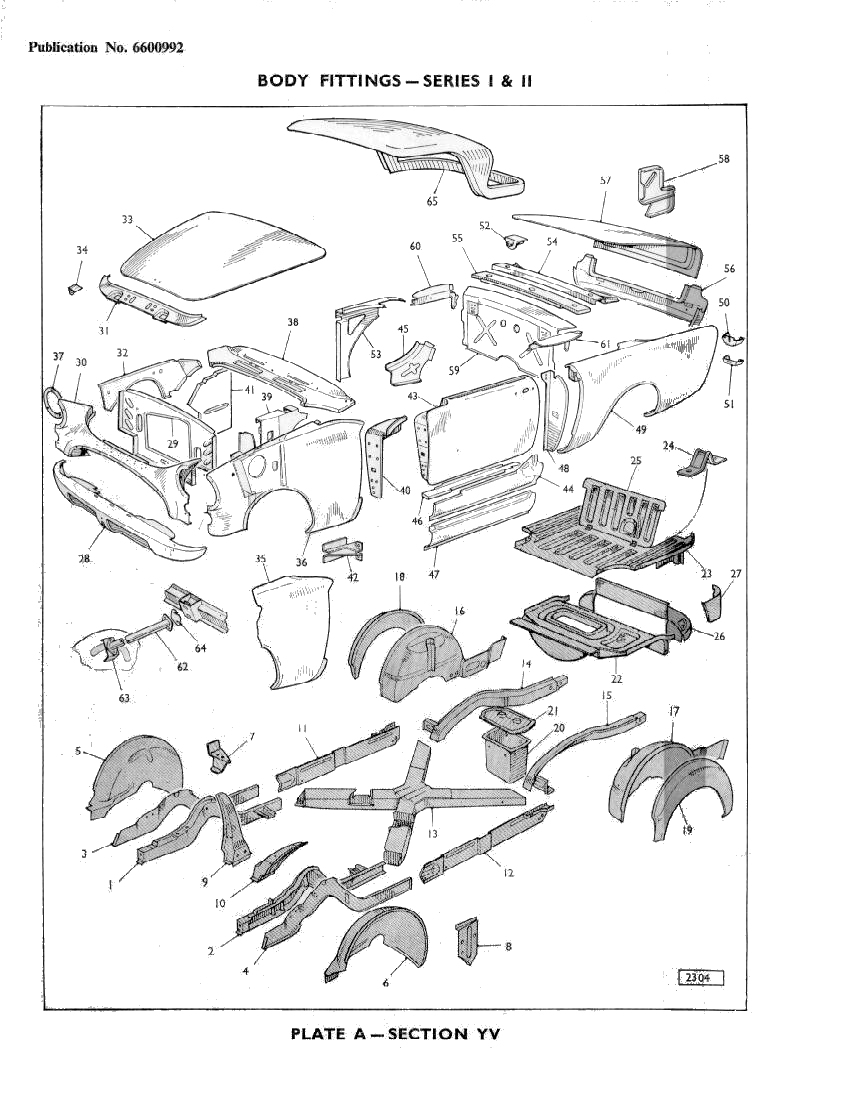

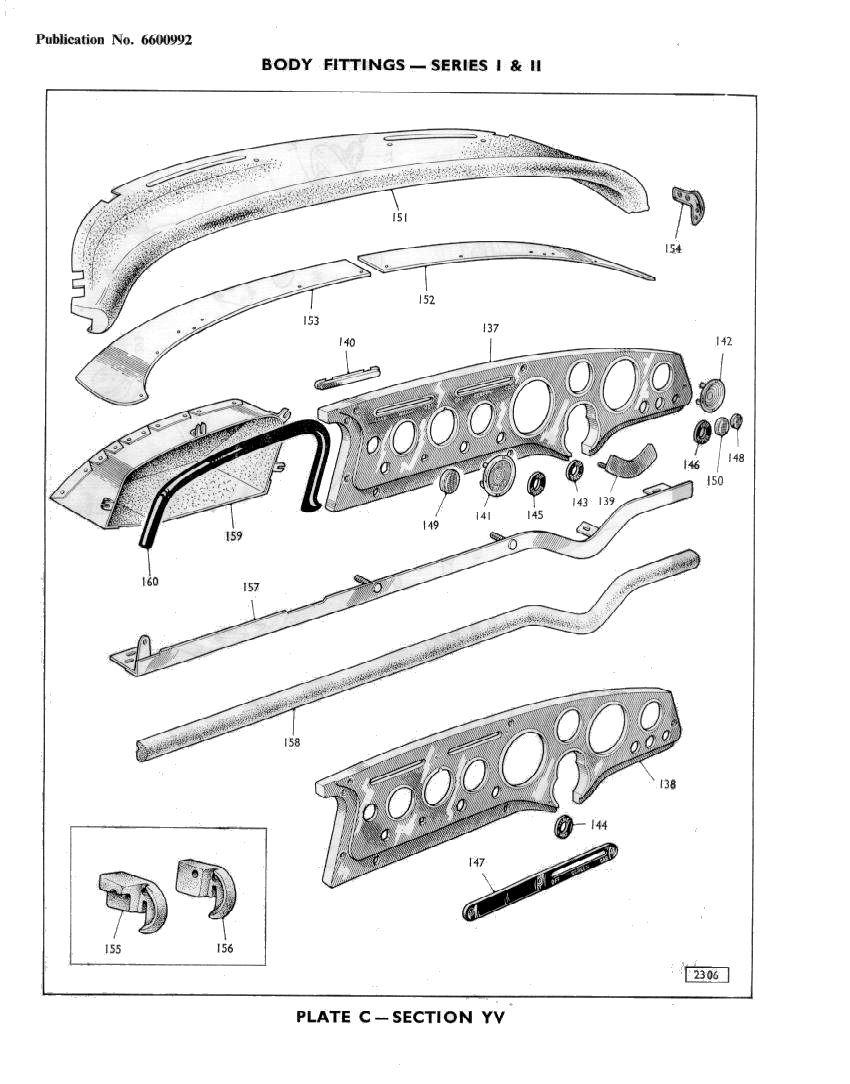

Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East

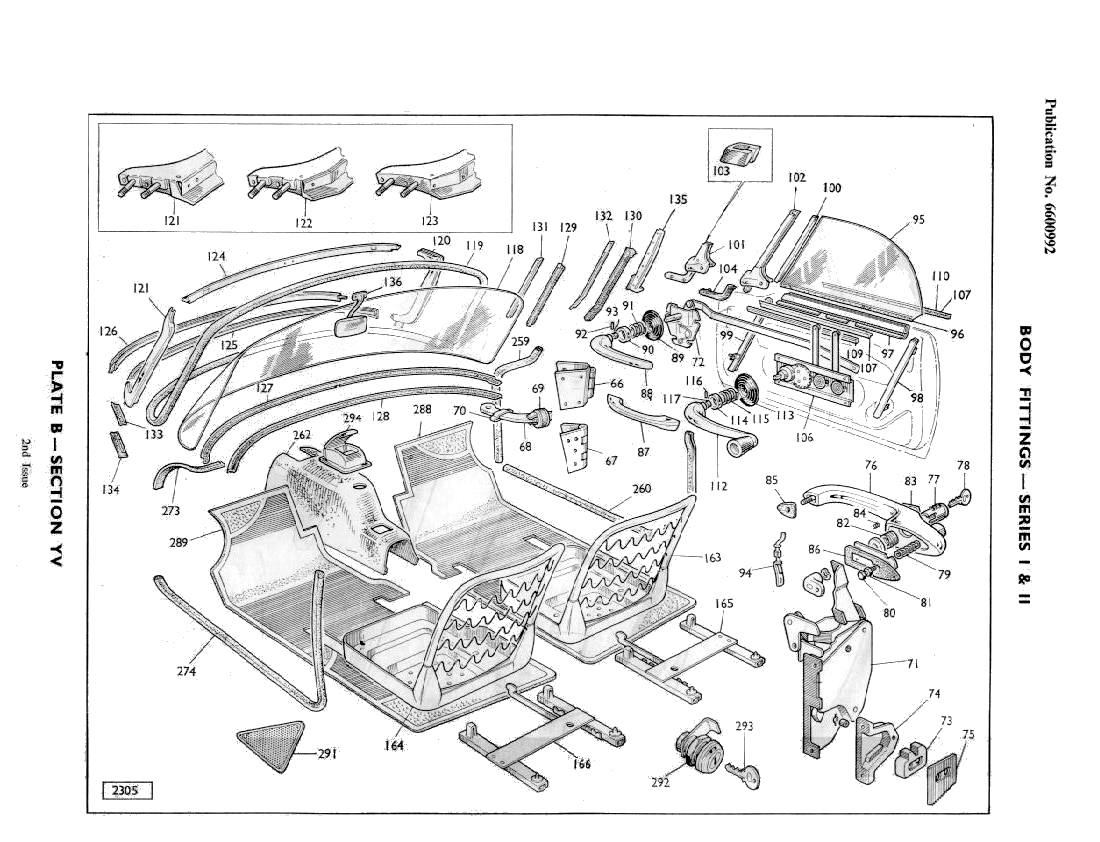

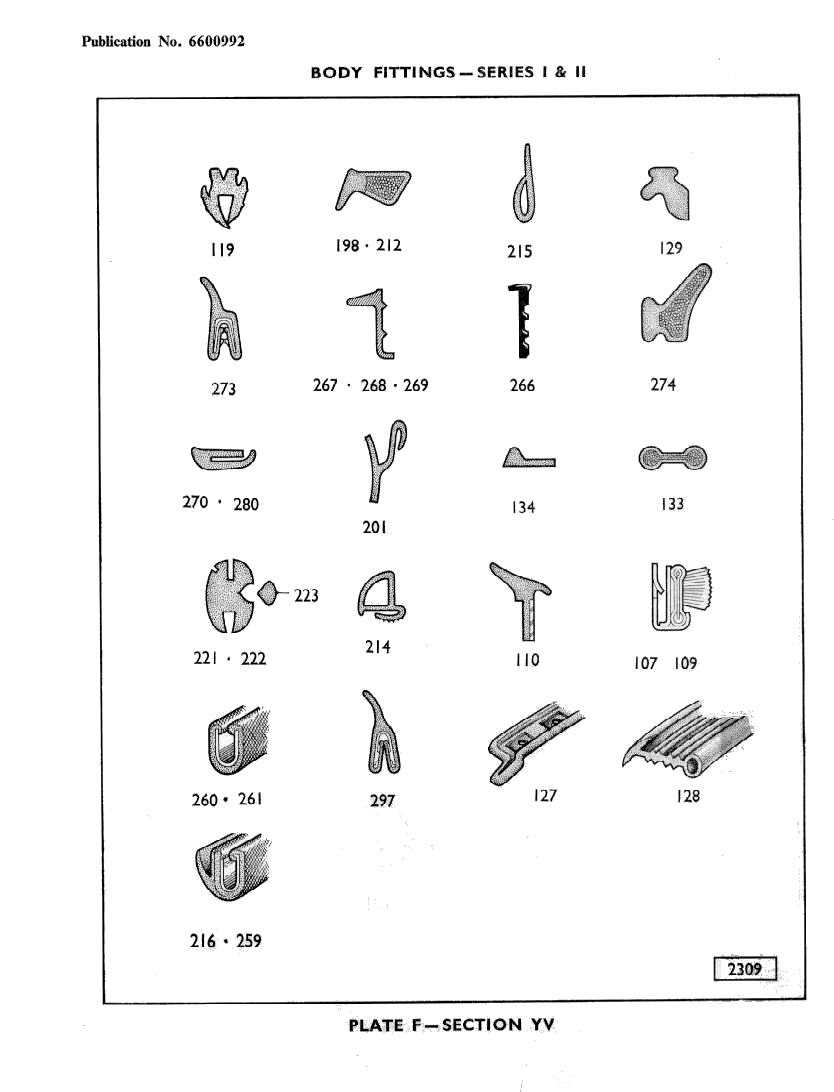

Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East

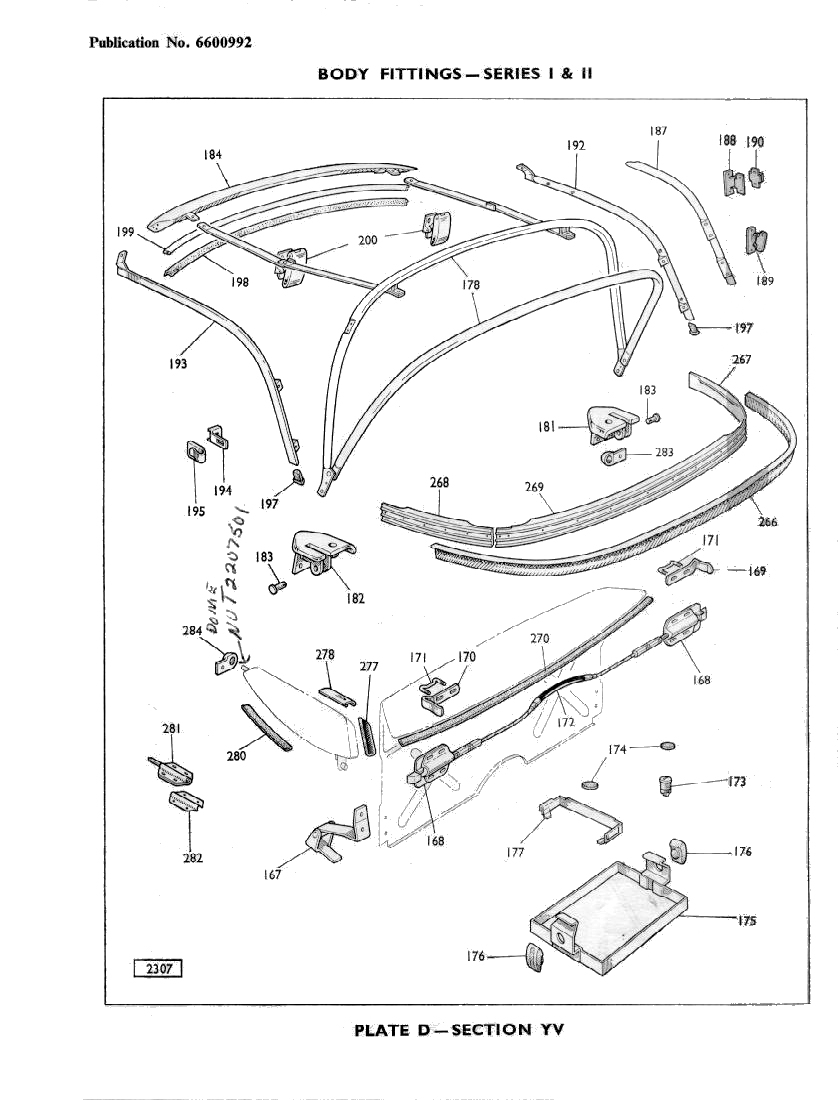

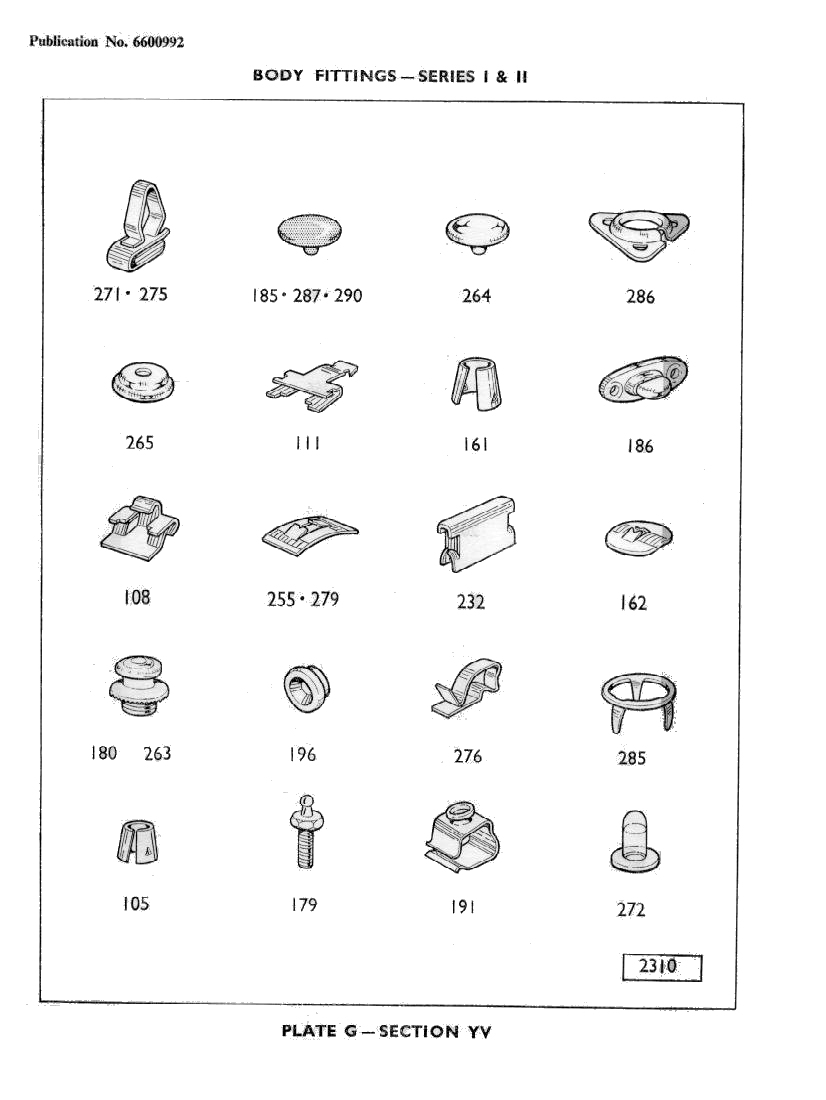

Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East

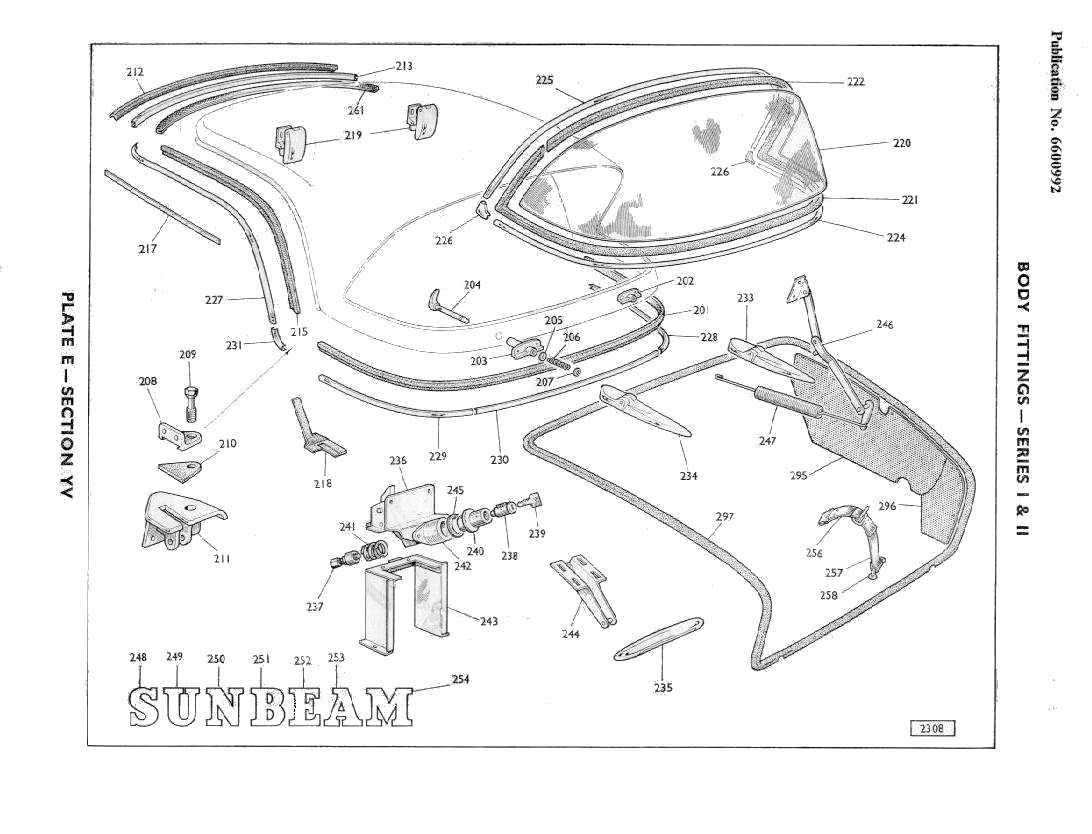

Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East
Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East

Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East
Series I/II Body Fittings -600- 100%
Series I/II Body Fittings
From Tigers East/Alpines East
Series I/II Clips, Seals and Fasteners -600- 100%
Series I/II Clips, Seals and Fasteners
From Tigers East/Alpines East

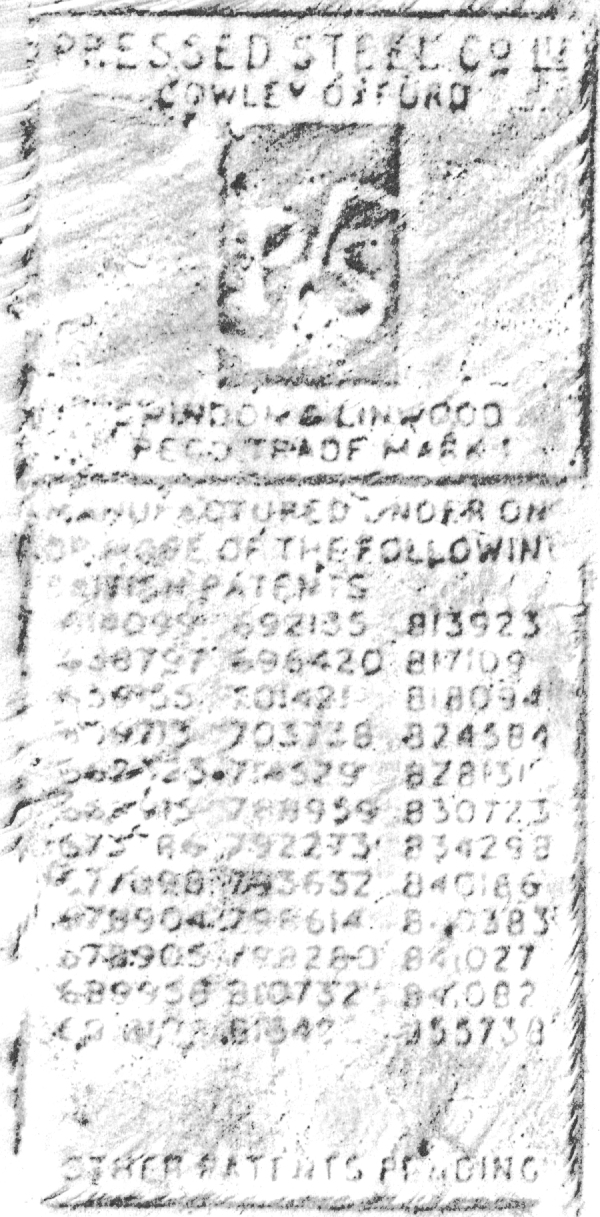

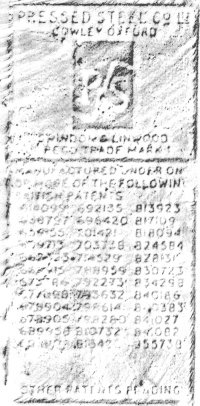

Series II Body plate -600- 100%
Series II Body plate
From the Tomato



A rubbing I made from my Tomato, scanned and then processed (I should really get a photo). It says:


PRESSED STEEL Co. Ltd.
COWLEY OXFORD

<a logo of P/S in a yin-yang design>

SWINDON & LINWOOD
REGD. TRADE MARK

MANUFACTURED UNDER ONE
OR MORE OF THE FOLLOWING
BRITISH PATENTS

<3-column by 12-row list of patent numbers>

OTHER PATENTS PENDING
